購買 VLS252015ET-4R7M與BYCHPS
購買即有保證

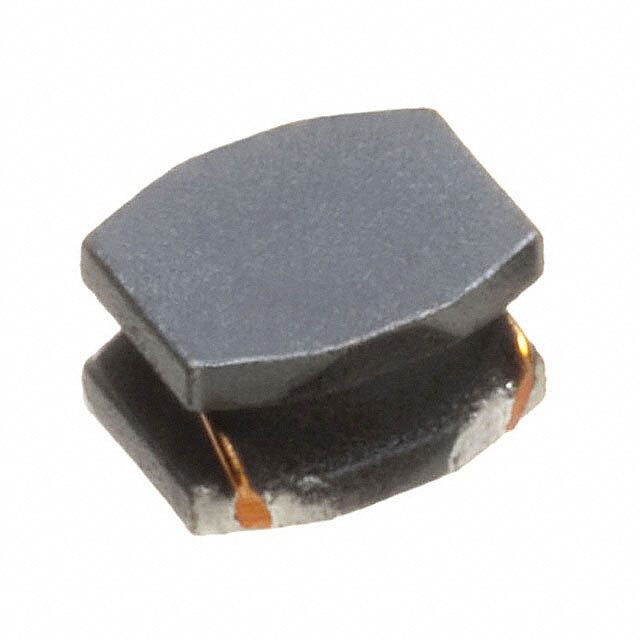

VLS252015ET-4R7M
- 型號:
- VLS252015ET-4R7M
- 製造商:
- TDK Corporation
- 描述:
- FIXED IND 4.7UH 890MA 318 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16867 Pieces
簡單介紹
BYCHIPS是 VLS252015ET-4R7M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的VLS252015ET-4R7M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | 1008 (2520 Metric) |
| 尺寸/尺寸: | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 屏蔽: | Shielded |
| 系列: | VLS |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 1008 (2520 Metric) |
| 其他名稱: | 445-6648-2 VLS252015ET4R7M |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | VLS252015ET-4R7M |
| 電感: | 4.7µH |
| 高度 - 座高（最大）: | 0.039" (1.00mm) |
| 頻率 - 測試: | 1MHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 4.7µH Shielded Wirewound Inductor 890mA 318 mOhm Max 1008 (2520 Metric) |
| 描述: | FIXED IND 4.7UH 890MA 318 MOHM |
| 直流電阻（DCR）: | 318 mOhm Max |
| 目前評級: | 890mA |
| 電流 - 飽和: | 1A |
| Email: | [email protected] |
