購買 G2R-1A-ASI-DC12與BYCHPS
購買即有保證
開啟電壓(最大值): | 8.4 VDC |
---|---|
關閉電壓(最小): | 1.8 VDC |
端接類型: | PC Pin |
切換電壓: | 380VAC, 125VDC - Max |
系列: | G2R |
發布時間: | 5ms |
繼電器類型: | General Purpose |
封装: | Tray |
其他名稱: | G2R1AASI12DC G2R1AASIDC12 G2RN8468A |
工作溫度: | -40°C ~ 70°C |
操作時間: | 15ms |
安裝類型: | Through Hole |
製造商零件編號: | G2R-1A-ASI-DC12 |
特徵: | Sealed - Flux Protection |

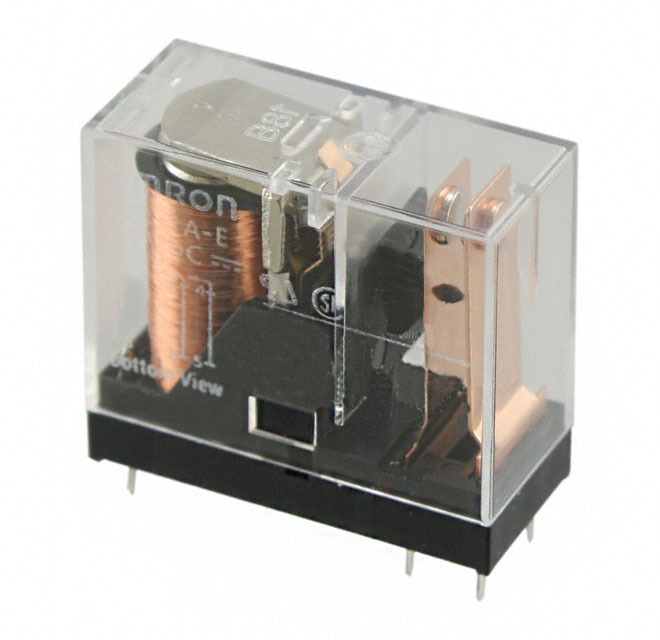

展開說明: | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole |
描述: | RELAY GEN PURPOSE SPST 10A 12V |
觸點額定值(電流): | 10A |
觸點材料: | Silver Alloy |
聯繫表: | SPST-NO (1 Form A) |
線圈電壓: | 12VDC |
線圈類型: | Non Latching |
線圈電阻: | 275 Ohms |
線圈功率: | 530 mW |
線圈電流: | 43.6mA |
